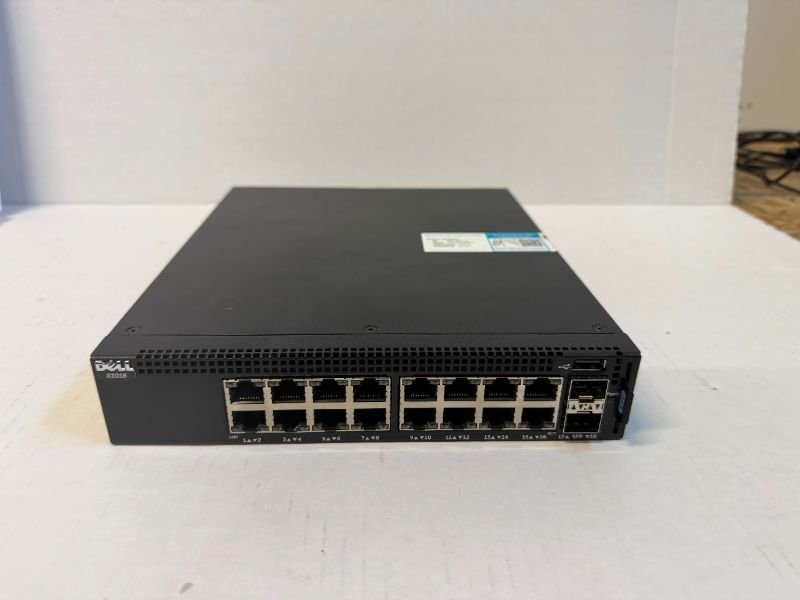

Dell X1018 16-Port Gigabit Ethernet Switch

Notes: Feature Specification Model Dell Networking X1018 Switch Type Smart Managed Layer 2+ RJ-45 Ports 16 × 10/100/1000 Mbps Gigabit Ethernet SFP Uplink Ports 2 × 1Gb SFP Switching Capacity 36 Gbps Forwarding Rate 26.8 Mpps MAC Address Table 16,000 entries VLAN Support Up to 4094 VLANs Jumbo Frames Supported Link Aggregation IEEE 802.3ad (LACP) QoS IEEE 802.1p QoS Spanning Tree STP, RSTP, MSTP Multicast IGMP Snooping v1/v2/v3 IPv4/IPv6 Static Routing (Layer 2+) Security 802.1X, RADIUS, ACLs, DHCP Snooping, ARP Inspection Management Web GUI, SNMP v1/v2c/v3, Limited CLI Power Consumption Approx. 14.7 W (Maximum) Cooling Fanless (silent operation) Rack Mount 1U Rack Mount Power Supply External AC Adapter

Optoma MovieTime VDDVGG DV11 DLP DVD Video Projector

Brand: Optoma MovieTime DV11

Notes: Feature Specification Brand Dell Model PowerConnect 2848 Device Type Layer 2 Managed Gigabit Ethernet Switch Ports 48 × 10/100/1000 Mbps Gigabit RJ-45 Uplink Ports 4 × Combo Gigabit RJ-45/SFP Ports SFP Fiber Support Yes (Shared with Combo Ports) PoE Support No Switching Capacity 96 Gbps Forwarding Rate 71.4 Million Packets Per Second (Mpps) MAC Address Table 8,000 Entries Jumbo Frame Support Up to 9 KB VLAN Support IEEE 802.1Q (Up to 64 VLANs) QoS IEEE 802.1p (4 Priority Queues per Port) Link Aggregation IEEE 802.3ad (Static LAG) Spanning Tree STP (802.1D) Flow Control IEEE 802.3x Management Web GUI, SNMP, Limited CLI Auto Features Auto MDI/MDIX, Auto-Negotiation Rack Mount 1U Rack Mount Power Supply Internal 100–240V AC, 50/60 Hz

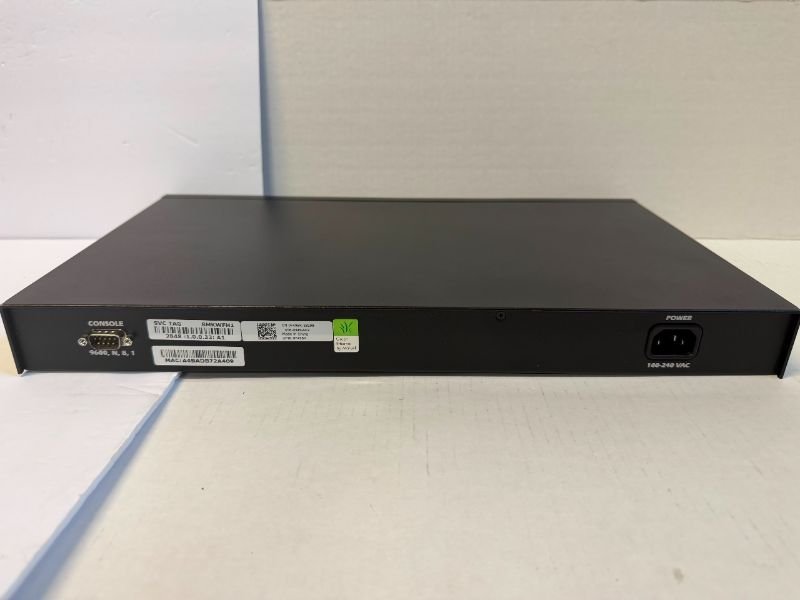

Dell PowerConnect 2848 48-Port Gigabit Ethernet Switch

Brand: Dell PowerConnect 2848

Notes: Feature Specification Brand Dell Model PowerConnect 2848 Device Type Managed Layer 2 Gigabit Ethernet Switch RJ-45 Ports 48 × 10/100/1000 Mbps Gigabit Ethernet Combo Uplink Ports 4 × Combo Gigabit Ports (RJ-45/SFP) SFP Support Yes (Shared with the last 4 RJ-45 combo ports) PoE Support No Switching Capacity 96 Gbps Forwarding Rate 71.4 Mpps MAC Address Table 8,000 Entries Jumbo Frames Up to 9 KB VLAN Support IEEE 802.1Q, Up to 64 VLANs QoS IEEE 802.1p (4 Priority Queues per Port) Link Aggregation IEEE 802.3ad (Static Link Aggregation) Spanning Tree STP (802.1D) Flow Control IEEE 802.3x Management Web GUI, SNMP, CLI (limited), DHCP/Static IP Auto Features Auto MDI/MDIX, Auto-Negotiation Rack Mount 1U Rack Mount Power Supply Internal 100–240V AC, 50/60 Hz

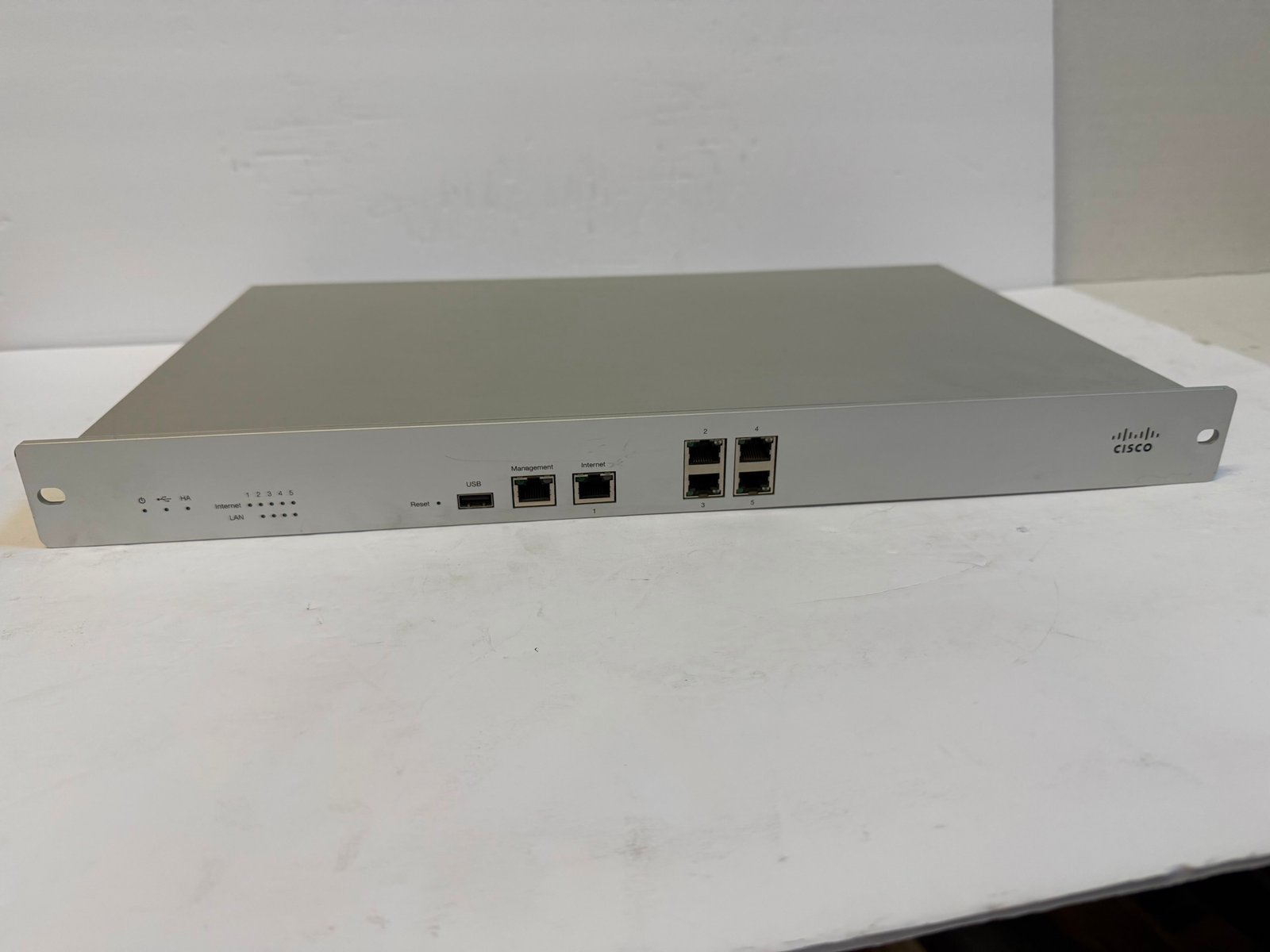

Cisco Meraki MX80 A80-17100 Stateful Firewall Security Appliance

Brand: Cisco Meraki MX80 A80-17100

Notes: Feature Specification Brand Cisco Meraki Model MX80 (A80-17100) Device Type Cloud-Managed Stateful Firewall & Security Appliance Firewall Throughput 250 Mbps Advanced Security Throughput 125 Mbps (IDS/IPS, content filtering, etc.) VPN Throughput Up to 100 Mbps Recommended Users Up to 100 users WAN Ports 2 × Gigabit Ethernet RJ-45 LAN Ports 8 × Gigabit Ethernet RJ-45 USB Port 1 × USB 2.0 (for supported 3G/4G failover) VPN Support Auto VPN, IPSec Site-to-Site VPN, Client VPN Security Features Stateful Firewall, IDS/IPS, Content Filtering, Malware Protection, Layer 7 Application Firewall SD-WAN Yes Traffic Shaping Yes VLAN Support Yes DHCP Server Yes IPv4 / IPv6 Supported Management Cisco Meraki Cloud Dashboard Power Supply Internal AC Power Supply (100–240V AC, 50/60Hz) Rack Mount 1U Rack Mount

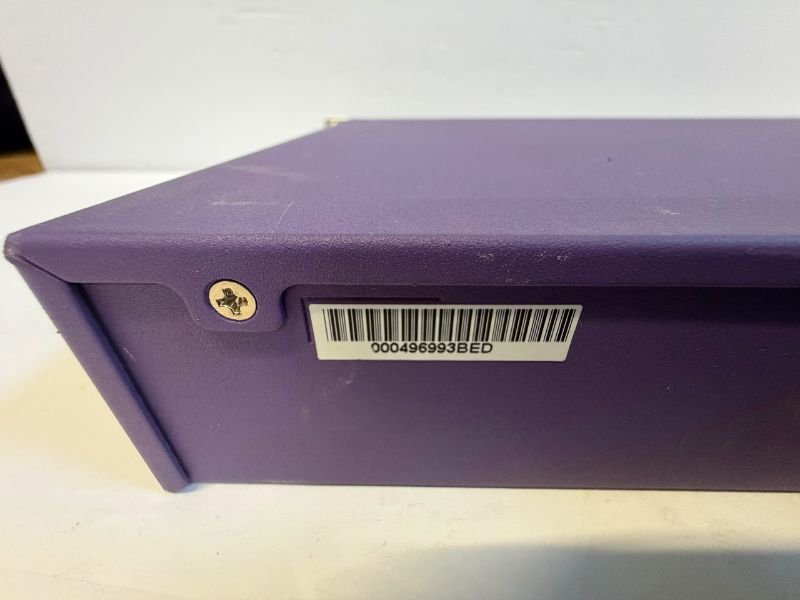

Extreme Networks Summit X440-48p-10G 48-Port PoE Switch

Brand: Extreme Networks Extreme Networks Summit X440-48p

Notes: Feature Specification Brand Extreme Networks Model Summit X440-48p-10G Device Type Layer 3 Managed Gigabit PoE+ Ethernet Switch RJ-45 Ports 48 × 10/100/1000 Mbps Gigabit PoE+ Ports PoE Standard IEEE 802.3af / IEEE 802.3at (PoE+) Maximum PoE per Port Up to 30W Total PoE Budget 380W 10Gb Uplink Ports 2 × SFP+ (10GbE) Additional Fiber Ports 2 × Shared SFP (1Gb) Switching Capacity 176 Gbps Forwarding Rate 130.9 Mpps Layer Support Layer 2 / Layer 3 Management Web GUI, CLI, SNMP, SSH, Telnet Security Features 802.1X Authentication, ACLs, Port Security, RADIUS, TACACS+

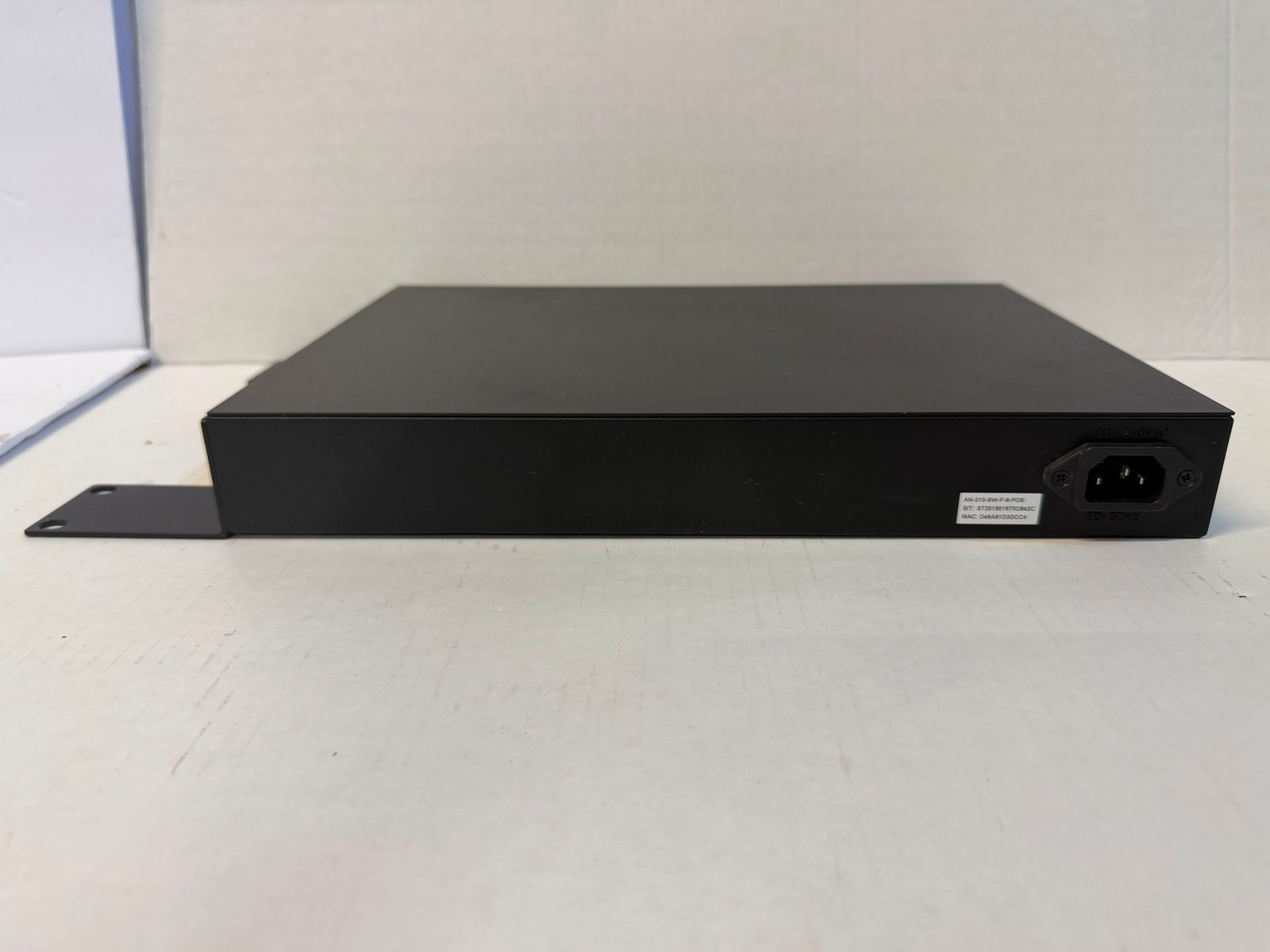

Araknis AN-210-SW-F-8-POE 8-Port Gigabit PoE Switch

Brand: Araknis Araknis AN-210-SW-F-8-POE

Notes: Feature Specification Brand Araknis Networks Model AN-210-SW-F-8-POE Device Type WebSmart Layer 2 Managed Gigabit PoE+ Switch Ethernet Ports 8 × 10/100/1000 Mbps RJ-45 Gigabit PoE+ Ports Uplink Ports 2 × 1 Gbps SFP Fiber Uplink Ports PoE Standard IEEE 802.3af / IEEE 802.3at (PoE+) Maximum PoE per Port Up to 30W Total PoE Budget 65W Switching Capacity 20 Gbps Forwarding Rate 14.8 Mpps MAC Address Table 8K Entries Packet Buffer 524 KB Layer Layer 2 Managed Switch Management Web GUI, OvrC Cloud Management Features VLAN, QoS, Link Aggregation, IGMP Snooping, Port Mirroring, STP/RSTP, Loop Prevention Power Supply Internal AC Power Supply (100–240V AC, 50/60Hz) Cooling Fanless (quiet operation) Mounting Desktop or Rack Mount

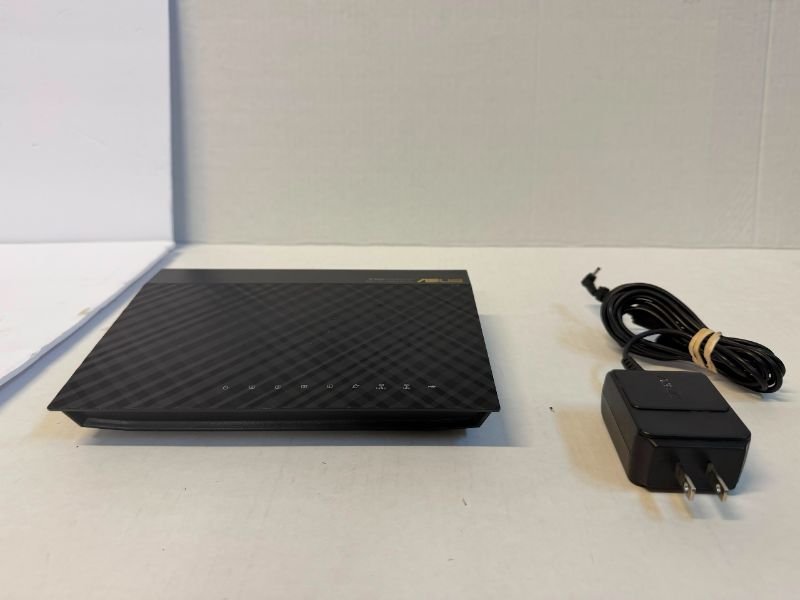

ASUS RT-AC66U AC1750 Dual-Band Wi‑Fi Router 4-Port, without Antennas

Notes: Feature Specification Brand ASUS Model RT-AC66U Device Type Dual-Band Wireless Gigabit Router Wi-Fi Standard Wi-Fi 5 (IEEE 802.11ac), backward compatible with 802.11a/b/g/n Wi-Fi Class AC1750 Wireless Speed Up to 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz) = 1750 Mbps total Frequency Bands 2.4 GHz & 5 GHz (Simultaneous Dual-Band) MIMO 3×3 MIMO Antennas 3 Detachable External Antennas (Not Included) Ethernet Ports 1 × Gigabit WAN, 4 × Gigabit LAN (10/100/1000 Mbps) USB Ports Original RT-AC66U: 2 × USB 2.0; RT-AC66U B1: 1 × USB 2.0 + 1 × USB 3.0 Operating Modes Router, Access Point, Repeater, Media Bridge Guest Network Yes QoS Adaptive QoS VPN Support Yes (OpenVPN, PPTP, L2TP/IPSec pass-through) IPv6 Support Yes Security WPA/WPA2-Personal, WPA/WPA2-Enterprise, SPI Firewall Management ASUSWRT Web Interface & ASUS Router App

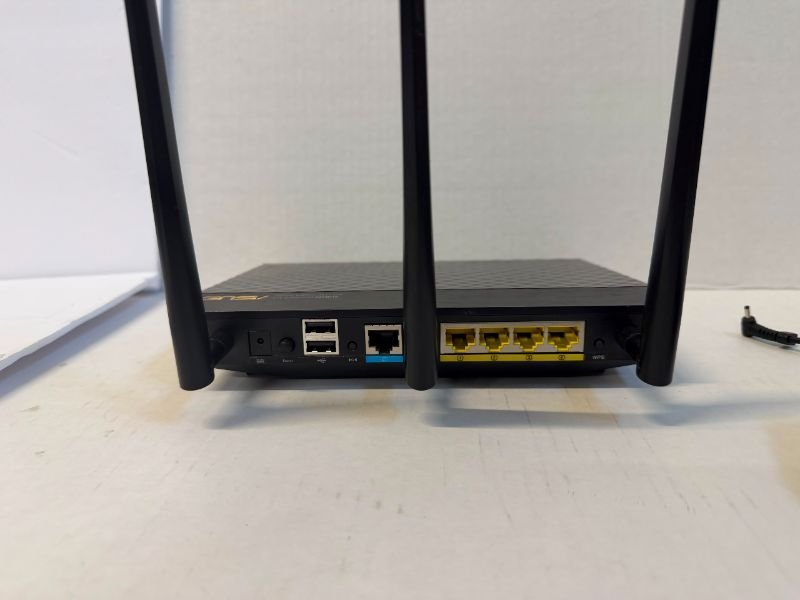

ASUS RT-AC66U AC1750 Dual-Band Wi‑Fi Router, 4-Port Gigabit, USB 2.0,

Brand: ASUS RT-AC66U

Notes: Feature Specification Brand ASUS Model RT-AC66U Device Type Dual-Band Wireless Gigabit Router Wi-Fi Standard Wi-Fi 5 (IEEE 802.11ac), backward compatible with 802.11a/b/g/n Wi-Fi Class AC1750 Wireless Speed Up to 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz) = 1750 Mbps total Frequency Bands Simultaneous Dual-Band (2.4 GHz & 5 GHz) MIMO 3×3 MIMO Antennas 3 External Detachable Antennas Ethernet Ports 1 × Gigabit WAN, 4 × Gigabit LAN (10/100/1000 Mbps) USB Ports 2 × USB (1 × USB 2.0, 1 × USB 3.0)* Operating Modes Router, Access Point, Repeater, Media Bridge, AiMesh Node (B1 version) Security WPA/WPA2-Personal, WPA/WPA2-Enterprise, SPI Firewall VPN Support Yes (PPTP, OpenVPN, IPSec pass-through) IPv6 Support Yes Guest Network Yes Quality of Service (QoS) Adaptive QoS Parental Controls Yes Management ASUSWRT Web Interface & ASUS Router App

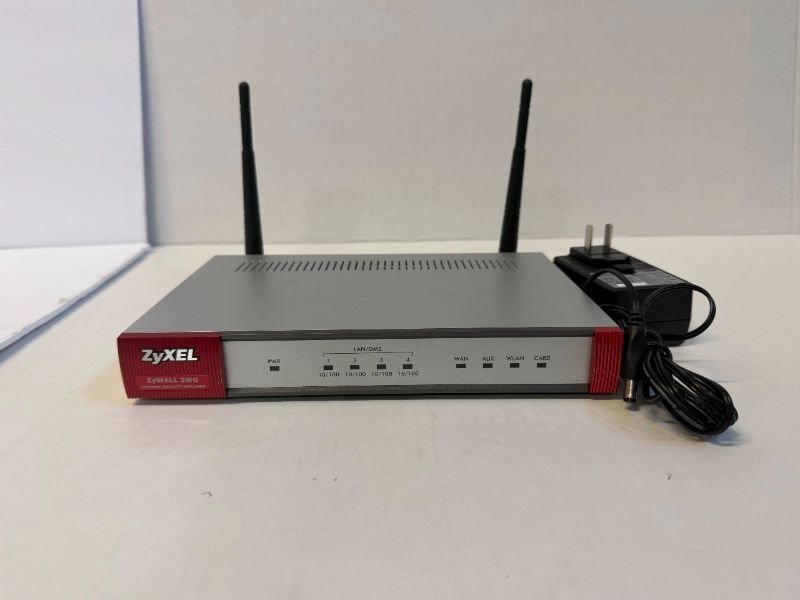

ZyXEL ZyWALL 2WG Firewall Security Router w/ Antennas

Brand: ZyXEL ZyWALL 2WG

Notes: Feature Specification Brand ZyXEL Model ZyWALL 2WG Device Type Firewall Security Router Wireless Standard IEEE 802.11a/b/g Wireless Speed Up to 54 Mbps Frequency Bands 2.4 GHz & 5 GHz (802.11a/b/g) WAN Ports 2 × 10/100 Mbps Ethernet (supports load balancing/failover) LAN Ports 4 × 10/100 Mbps Ethernet Switch DMZ Port 1 Dedicated DMZ Port PCMCIA Slot Yes (supports compatible 3G WAN cards) VPN Support IPSec VPN Firewall Stateful Packet Inspection (SPI) Firewall Security Features DoS Protection, NAT, Content Filtering, Access Control, VPN, Firewall Policies DHCP Server Yes VPN Tunnels Up to 70 IPSec VPN tunnels Management Web Interface, CLI, SNMP Power Adapter External AC Adapter Physical Dimensions Measurement Value Width 10.2 in (260 mm) Depth (Length) 7.1 in (180 mm) Height 1.7 in (43 mm) Weight Approximately 2.2 lb (1.0 kg)

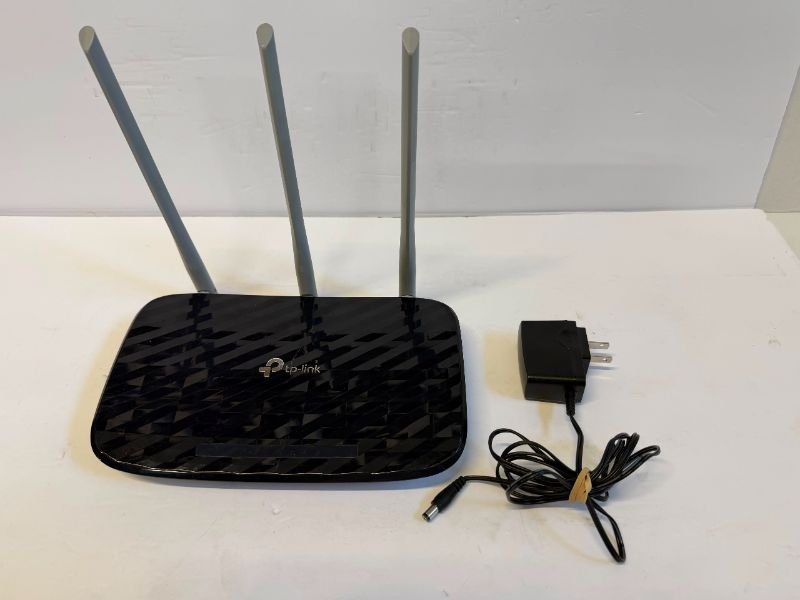

TP-LINK Archer C20 AC750 300Mbps Dual-Band Wireless Router

Notes: Feature Specification Brand TP-Link Model Archer C20 Device Type Wireless Dual-Band Router Wi-Fi Standard Wi-Fi 5 (IEEE 802.11ac), backward compatible with 802.11n/g/b/a Wi-Fi Speed AC750 (300 Mbps @ 2.4 GHz + 433 Mbps @ 5 GHz = 733 Mbps total) Frequency Bands Dual-Band (2.4 GHz & 5 GHz) Antennas 3 Fixed External Antennas Ethernet Ports 1 × 10/100 Mbps WAN, 4 × 10/100 Mbps LAN USB Port None Operating Modes Router Mode, Access Point Mode, Range Extender Mode Security WPA/WPA2, WPA/WPA2-Enterprise, WEP, SPI Firewall Guest Network Yes (2.4 GHz & 5 GHz) IPv6 Support Yes QoS Yes (Quality of Service by Device) Parental Controls Yes App Support TP-Link Tether (Android & iOS) WPS Yes

ARRIS SURFboard SB8200 DOCSIS 3.1 10 Gbps Cable Modem - White

Notes: Feature Specification Brand ARRIS Model SURFboard SB8200 Device Type Cable Modem Color White DOCSIS Standard DOCSIS 3.1 (Backward compatible with DOCSIS 3.0) Channel Bonding 32×8 DOCSIS 3.0 or 2×2 OFDM/OFDMA (DOCSIS 3.1) Maximum DOCSIS Data Rate Up to 10 Gbps downstream (network capability) Recommended Internet Plans Up to 1–2 Gbps (depends on ISP) Ethernet Ports 2 × Gigabit Ethernet (10/100/1000 Mbps) Link Aggregation Yes (supports combining both Ethernet ports when supported by ISP/router) Wi-Fi No (requires a separate Wi-Fi router) Telephone Port None Coaxial Port 1 × F-Type Cable Connector IPv4 / IPv6 Supported LED Indicators Power, Downstream, Upstream, Online, Ethernet Compatibility Compatible with many major cable ISPs such as Xfinity and Cox (availability depends on the provider and plan)

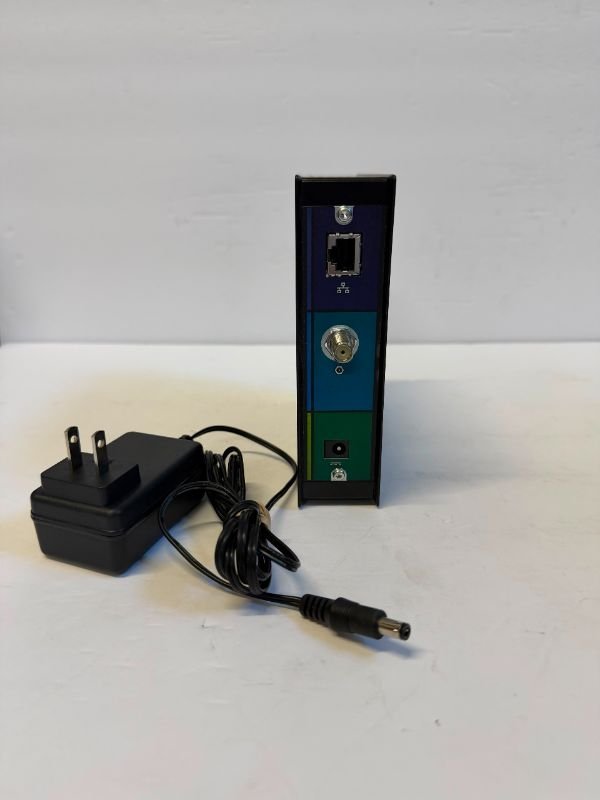

Motorola Surfboard SB6120 DOCSIS 3.0 Cable Modem with AC Adapter

Notes: Feature Specification Brand Motorola Model SURFboard SB6120 Device Type Cable Modem DOCSIS Standard DOCSIS 3.0 (Backward compatible with DOCSIS 2.0/1.1/1.0) Channel Bonding 4 Downstream × 4 Upstream (4×4) Maximum Download Speed Up to 172 Mbps theoretical (real-world speeds depend on ISP) Maximum Upload Speed Up to 131 Mbps theoretical Ethernet Port 1 × Gigabit Ethernet (10/100/1000 Mbps RJ-45) Coaxial Port 1 × F-Type Cable Connector USB Port None Wi-Fi No (requires a separate wireless router) IPv6 Support Yes Security DOCSIS 3.0 Security (AES/3PI+) Network Management SNMP v2/v3 Power Input 100–240V AC, 50/60 Hz (external AC adapter) LED Indicators Power, Receive, Send, Online, Link Operating Temperature 32°F–104°F (0°C–40°C)
